2011 FQ-E Series Double-layer Computer Control with continuous-rolled and Point-cutting Bag Making Machine FQ-E manufacturer from China Wenzhou Ruizhi packing machinery co.LTD

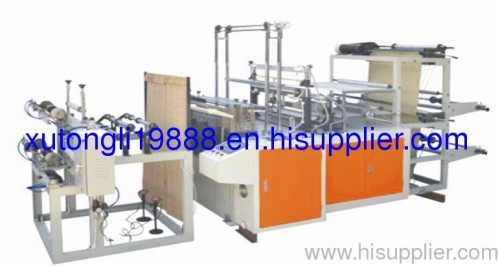

2011 FQ-E Series Double-layer Computer Control with continuous-rolled and Point-cutting Bag Making Machine

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FQ-E

Production Capacity: 300sets/year

Delivery Date: 30Days

Automatic Grade: Automatic

Usage: Outer

Brand Name: MTED

Means of Transport: Ocean

Packing: with wooden case

Processing: Packing Machine

Type: General

Packaging: Plastic

style: Point-cutting

1>Micro-computer control
2>Intelligent temperature control
3>Speed of Bag Making:30-160pcs/min

Use:

This machine is suitable for sealing and cutting high density polyethylene(HDPE)\low density polyethylene (LDPE)\polypropylene(PP)and plastic film. And It's an ideal facility for producing flat bag and T-shirt bag.

Function:

1.This machine is design specially used double machine for flat bag\T-shirt bag withcontinuous-rolled and Point-cutting. Adopt micro-computer control,Step motor material-feeding(can be chosen import servo motor system material-feeding).

2.Micro-computer freely set length,photoelectric printing and Auto tracking\Precision,Auto stop when lose mark,material-feeding adopt photoelectric controller.

3. Auto meter counting and freely set alarm.

4. Automatic constant temperature control makes bag mouth deep-set sealing and fitly.

Main Technical Parameters:

Model
500
600
700
Max.Length of Making Bag(mm)
100-1000
100-1200
100-1200
Mas.Width of Making Bag(mm)
100-450
100-500
100-600
Bag-Making Speed (pcs/min)
(30-150) x 2
(30-150) x 2
(30-150) x 2
Power Supply(V)
220
220
220/380
Total Power(kw)
3.5
4.2
5.5
Machine Weight(kg)
500
550
650
Machine Dimension(mm)
3600x1300x1700
3600x1300x1700
3600x1400x1700
Incasement Weight(kg)
550
600
750
