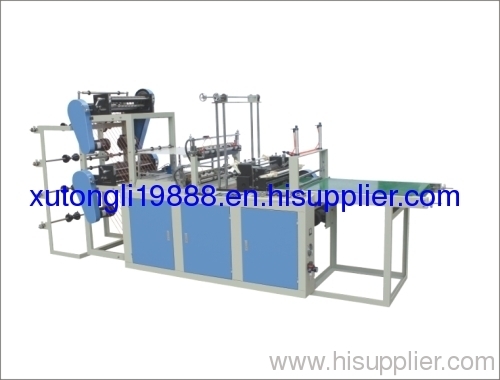

2011 FQ-D Series Double-layer Computer Control Hot-sealing Cool-cutting Bag Making Machine

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FQ-D

Production Capacity: 300sets/year

Delivery Date: 30Days

Automatic Grade: Automatic

Usage: Outer

Brand Name: MTED

Means of Transport: Ocean

Packing: with wooden case

Processing: Packing Machine

Type: General

Packaging: Plastic

style: Conveyer Belt

1>Micro-computer control
2>Intelligent temperature control
3>Speed of Bag Making:30-160pcs/min

Use:

This machine is suitable for sealing and cutting high density polyethylene(HDPE)\low density polyethylene (LDPE)\polypropylene(PP)and plastic film.And It's an ideal facility for producting flat bag and T-shirt bag.

Function

1.This machine adopt micro-computer control,Step motor material-feeding(can be chosen import servo motor system material-feeding), main unit frequency adjusting speed\Auto feeding, smooth making bag.

2.Micro-computer freely set length,photoelectric printing and Auto tracking\Precision,Auto stop when lose mark,material-feeding adopt photoelectric controller.

3. Auto meter counting and freely set alarm.

4. Double position sealing, easy to adjusting makes sealing mouth deep-set and fitly. Adopt Auto high precision temperature controller to dominate the temperature, make different thickness film sealing hard and beautifully.

Main Technical Parameters:

Model
600-Model
700 Model
800 Model
1000 Model
Max.Length of Making Bag(mm)
100-700
100-700
100-700
100-800
Mas.Width of Making Bag(mm)
150-260
150-300
200-350
200-450
Bag-Making Speed (pcs/min)
(30-160) x 4
(30-160) x 4
(30-160) x 4
(30-160) x 4
Power Supply(V)
220V
220V
220V
380V
Total Power(kw)
5.0
6.0
7.0
8.5
Machine Weight(kg)
750
800
850
900
Machine Dimension(mm)
4000x1100x1800
4000x1300x1800
4000x1400x1800
4200x1600x1800
Incasement Weight(kg)
800
850
900
1000
