2011 RZGS Series Eight-color High Speed Machinery Flexography Digital Printing Machine

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RZGS

Production Capacity: 300sets/year

Delivery Date: 25Days

Type: Printing Service

Brand Name: MTED

Means of Transport: Ocean

Packing: standard wooden packaging

Application: Bag

Printing: Reel Printing

type: paper,film,non-woven

1.Easy operation, flexible starting, accurate color register.
2.360degree continuous & adjustable longitudinal register device

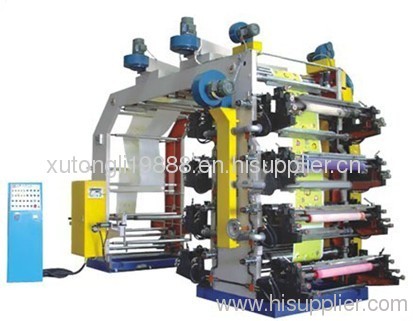

RZGS Series Eight-color Flexography Printing Machine
Application: Introduce sensitization resin as flexible printing plate, suitable for printing
such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,
etc. It is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.

Performance and Features
1. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
2. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after     lifting.
3. The printing ink is spread by the anilox cylinder with even ink color.
4. Reliable drying system coordinated with high-speed rotation, it will automatically break    circuit when the machine stops.
5. The frequency control of motor speed adapts to different printing speeds.
6. There are Jogging/Stopping buttons on the plate roller base and material rolling rack      so as to make it easy operate the machine when the plate is installed.

Main Technical Parameters

Type	600	800	1000	1200	1400	1600	1800	2000
Printing color	8colors (8+0,7+1,6+2,5+3,4+4)
Max. Web Width(mm)	600	800	1000	1200	1400	1600	1800	2000
Max. Effective Printing Width(mm)	560	760	960	1160	1360	1560	1760	1960
Range of Repeat Printing Length	191-1016mm(7.5°-40°)
Max. Diameter of Roll Material	600mm
Printing Speed	50~80m/min
Printing plate lifting system	Manual/Automatic
Mechanical speed	3-100m/min
Anilox cylinder	50-1000LPI
Register precision	±0.15~±0.25mm
Plate Thickness(Both side adhesive tape included)	2.38mm
Main motor	5.5kw	5.5kw	7.5kw	7.5kw	11kw	11kw	15kw	15kw
Total Power	30kw	32kw	35kw	37kw	45kw	48kw	52kw	55kw
Weight	5500kg	5750kg	6000kg	6250kg	6500kg	6750kg	7000kg	7300kg
Overall Dimension	5.8×1.65 ×3.2m	5.8×1.8 ×3.2m	5.8×2.0 ×3.2m	5.8×2.2 ×3.2m	5.8×2.4 ×3.2m	5.8×2.6 ×3.2m	5.8×2.8 ×3.2m	5.8×3.0 ×3.2m
