2011 RZGS Series Six-color High Speed Machinery Flexography Digital Photo Printing Machine RZGS manufacturer from China Wenzhou Ruizhi packing machinery co.LTD

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: RZGS

Production Capacity: 300sets/year

Delivery Date: 25Days

Type: Printing Service

Brand Name: MTED

Means of Transport: Ocean

Packing: standard wooden packaging

Application: Bag

Printing: Reel Printing

type: paper,film,non-woven

1.Easy operation, flexible starting, accurate color register.
2.360degree continuous & adjustable longitudinal register device

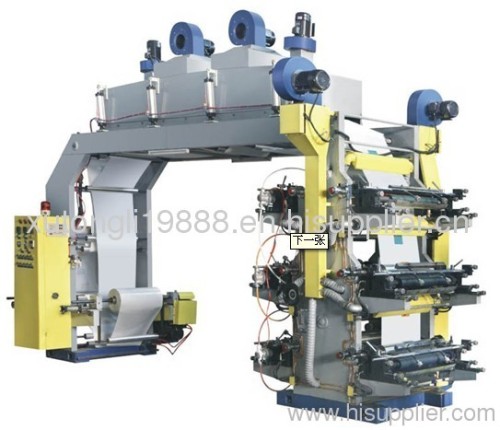

RZGS Series Six-color Flexography Printing Machine

Usage:

This machine is suitable for plastic film, paper, non-woven fabric, drench film paper, film laminiting paper and so on.(roll to roll print)

Main Specifications and The Features:
1. The use of motors, variable frequency speed control, saving electricity.

2. Off –printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.

3. Rewinding and unwinding system adopts tension controller, magnetic powder and EPC device to achieve good print effect.

4. The use of special helical-tooth gear, color matching is accurate.

5. There are two sets of heating devices, including central heating and constant

temperature control system for drying system.

6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.

7. Ceramic rollers with hard oxidation, treating by dynamic balance, static balance, can achieve perfect printing effect(optional).

8. With the cold wind system, can effectively prevent from ink adhesion after printing.

9. The printing produces are clear and good arrangement quality.

10. Bearing: NSK, Japan brand , Germany ASNU aluminum alloy roll.

Main Technical Parameters

Type	600	800	1000	1200	1400	1600	1800	2000
Printing color	8colors (8+0,7+1,6+2,5+3,4+4)
Max. Web Width(mm)	600	800	1000	1200	1400	1600	1800	2000
Max. Effective Printing Width(mm)	560	760	960	1160	1360	1560	1760	1960
Range of Repeat Printing Length	191-1016mm(7.5°-40°)
Max. Diameter of Roll Material	600mm
Printing Speed	50~80m/min
Printing plate lifting system	Manual/Automatic
Mechanical speed	3-100m/min
Anilox cylinder	50-1000LPI
Register precision	±0.15~±0.25mm
Plate Thickness(Both side adhesive tape included)	2.38mm
Main motor	5.5kw	5.5kw	7.5kw	7.5kw	11kw	11kw	15kw	15kw
Total Power	30kw	32kw	35kw	37kw	45kw	48kw	52kw	55kw
Weight	5500kg	5750kg	6000kg	6250kg	6500kg	6750kg	7000kg	7300kg
Overall Dimension	5.8×1.65 ×3.2m	5.8×1.8 ×3.2m	5.8×2.0 ×3.2m	5.8×2.2 ×3.2m	5.8×2.4 ×3.2m	5.8×2.6 ×3.2m	5.8×2.8 ×3.2m	5.8×3.0 ×3.2m
