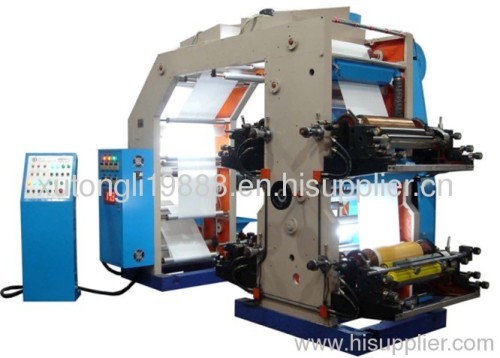

2011 RZGS Series Four-color High Speed Machinery Flexography Digital Photo Printing Machine RZGS manufacturer from China Wenzhou Ruizhi packing machinery co.LTD

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: RZGS

Production Capacity: 300sets/year

Delivery Date: 25Days

Type: Printing Service

Brand Name: MTED

Means of Transport: Ocean

Packing: standard wooden packaging

Application: Bag

Printing: Reel Printing

type: paper,film,non-woven

1.Easy operation, flexible starting, accurate color register.
2.360degree continuous & adjustable longitudinal register device

2011 RZGS Series Four-color High Speed Machinery Flexography Digital Photo Printing Machine

Usage:

This machine is suitable for plastic film, paper, non-woven fabric, drench film paper, film laminiting paper and so on.(roll to roll print)

Main Specifications and The Features:
1. Easy to operation, accurate color, long life.

2. The use of motors, variable frequency speed control, saving electricity.

3. Off –printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.

4. Rewinding and unwinding system adopts tension controller, magnetic powder and EPC device to achieve good print effect.

5. The use of special helical-tooth gear, color matching is accurate.

6. There are two sets of heating devices, including central heating and constant

temperature control system for drying system.

7. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.

8. Ceramic rollers with hard oxidation, treating by dynamic balance, static balance, can achieve perfect printing effect(optional).

9. With the cold wind system, can effectively prevent from ink adhesion after printing.

10. The printing produces are clear and good arrangement quality.

11. Bearing: NSK, Japan brand , Germany ASNU aluminum alloy roll.

Main Technical Parameters

Type	RZGS-600	RZGS-800	RZGS-1000	RZGS-1200
Printing color	4colors (4+0,3+1,2+2)
Max. Web Width	600mm	800mm	1000mm	1200mm
Max. Effective Printing Width	560mm	760mm	960mm	1160mm
Range of Repeat Printing Length	191-1016mm(7.5°-40°)
Max. Diameter of Roll Material	600mm
Printing Speed	50~80m/min
Printing plate lifting system	Manual/Automatic
Mechanical speed	3-100m/min
Anilox cylinder	50-1000LPI
Register precision	±0.15~±0.25mm
Plate Thickness(Both side adhesive tape included)	2.38mm
Main motor	1.5kw	2.2kw	4kw	4kw
Total Power	20kw	22kw	27kw	30kw
Weight	4400kg	4800kg	5000kg	5200kg
Overall Dimension	5.5×1.65×2.4m	5.5×1.8×2.4m	5.5×2.0×2.4m	5.5×2.2×2.4m
