Wenzhou Ruizhi packing machinery co.LTD
|

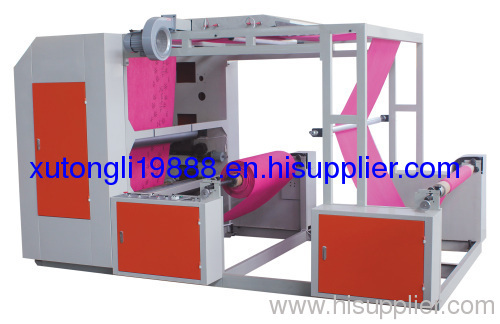

2011 YT- B Non Woven Fabric Flexible Printing Machine
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.360°continuous and adjustable longitudinal refjster device.
2.Easy operation, flexible starting,accurate colour register
Use:
Suitable for printing such packing materials as non-woven fabric,polyethylene, polypropylene plastic bag, glass paper,etc. It is a kind of ideal printing equipment for producing paper package, supermarket handbag, vest bag and clothes bag, etc.
Function:
1 Easy operation, flexible starting, accurate color register.
2 The meter counter an set printing quantity according to the requirement\Stop the machine automatically at the quantity\Stop when the material is cut off.
3 Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink automatically after lifting.
4 The printing ink is spread by the anilox cylinder with even ink color.
5 Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6 360°continuous and adjustable longitudinal register device.
7 The import frequency controller of motor speed adapts to different printing speed.
8 there are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameters:
Model | 21200 | 21400 |
Max.Width of Printing Material (mm) | 1200 | 1400 |
Max.printing Width(mm) | 1160 | 1360 |
Length Range of Printing Product(mm) | 191-914 | 191-914 |
Max.Diameter of Roll Material(mm) | 1000 | 1000 |
Printing Speed (m/min) | 5-50 | 5-50 |
Thickness of plate(mm) (including Two-sided Glue Paper) | 2.38/3.94 | 2.38/3.94 |
Power Supply(V) | 380 (three-phase four-wire power cable) | 380 (three-phase four-wire power cable) |
Total Power(kw) | 6 | 8 |
Machine Weight(kg) | 700 | 800 |
Incasement Weight(kg) | 800 | 900 |
Machine Dimensions (mm) | 4200x2200x2200 | 4200x2400x2200 |
Model | 31200 | 31400 |
Max.Width of Printing Material (mm) | 1200 | 1400 |
Max.printing Width(mm) | 1160 | 1360 |
Length Range of Printing Product(mm) | 191-914 | 191-914 |
Max.Diameter of Roll Material(mm) | 1000 | 1000 |
Printing Speed (m/min) | 5-50 | 5-50 |
Thickness of plate(mm) (including Two-sided Glue Paper) | 2.38/3.94 | 2.38/3.94 |
Power Supply(V) | 380 (three-phase four-wire power cable) | 380 (three-phase four-wire power cable) |
Total Power(kw) | 11 | 12 |
Machine Weight(kg) | 1200 | 1300 |
Incasement Weight(kg) | 1400 | 1500 |
Machine Dimensions (mm) | 4200x2200x2200 | 4200x2200x2200 |
Model | 41200 | 41400 |
Max.Width of Printing Material (mm) | 1200 | 1400 |
Max.printing Width(mm) | 1160 | 1360 |
Length Range of Printing Product(mm) | 191-914 | 191-914 |
Max.Diameter of Roll Material(mm) | 1000 | 450 |
Printing Speed (m/min) | 5-50 | 5-50 |
Thickness of plate(mm) (including Two-sided Glue Paper) | 2.38/3.94 | 2.38 |
Power Supply(V) | 380 (three-phase four-wire power cable) | 380(three-phase four-wire power cable) |
Total Power(kw) | 15 | 17 |
Machine Weight(kg) | 1500 | 1700 |
Incasement Weight(kg) | 1700 | 1900 |
Machine Dimensions (mm) | 4200x2200x2800 | 4200x2400x2800 |
