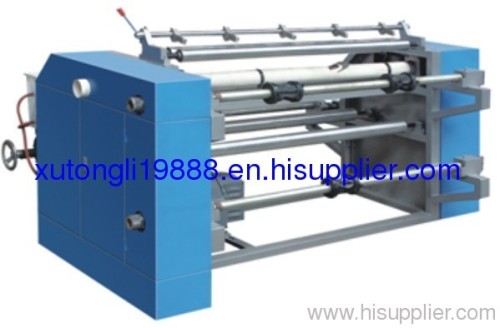

2011 QFJ-G Photoelectrical Correction Slitting and Cutting Machine

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QFJ-G

Production Capacity: 500sets/year

Delivery Date: 30Days

Certification: CE

Brand Name: MTED

Means of Transport: Ocean

Packing: standard wooden case

Product Type: Paper Bag Making Machine

Processing Type: Paper Slitting and Rewindin...

use: slitting and cutting

1.Total power:2.2kw
2.The speed of machine:70m/min
3.Has the function of high slitting speed , high precision

Use: Suitable for PE\BOPP\PET\PVC\Paper\ALUMINUM FOIL and kinds of roll materials, etc.

Function:

1, Adopt independent micro-computer screen\easy operation.
2. Unwinding and Rewinding tension magnetic powder control;feeding automatic meter counting\unwinding photoelectrical Auto-correction.
3. Adopt wind deliver rim charge or rewinding device;double air-shaft rewinding\cutting head face flattening.
4. Aluminum foil\paper cutting need purchase circular knife accessories.

Main Technical Parameters:

Model	1300	1600	1800
Max. Width of Raw Material(mm)	1300	1600	1800
Max. Diameter of Raw Material (mm)	600	600	600
Max. Diameter of Rewinding(mm)	450	450	450
Speed of Machine(pcs/min)	20-80	20-80	20-80
Power Supply(V)	220v	220v	220v
Total Power(kw)	2.2kw	2.2kw	3kw
Machine Weight(kg)	500kg	600kg	700kg
Gross Weight(kg)	600kg	700kg	800kg
Overall Dimension(mm)	2400x1800x1300	2600x1800x1300	2800x1800x1300
