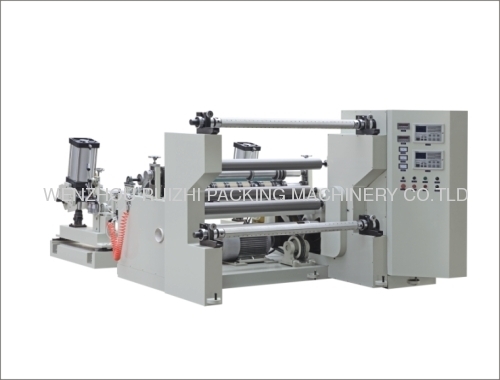

QFJ-IV Series Siltting Machine and Rewinding Machine For Paper

Price:	25000.0~30000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QFJ-IV

Production Capacity: 500sets/year

Delivery Date: 30Days

Certification: CE

Brand Name: MTED

Means of Transport: Ocean

Packing: standard wooden case

Product Type: Paper Bag Making Machine

Processing Type: Paper Slitting and Rewindin...

function: slitting and rewinding

1.Total power:11kw
2.The speed of machine:16-160m/min
3.The feature of machine is stability, secunlty, efficient, etc.

CHARACTERISTICS
1. The machine is mainly used to slit stick paper, craft paper and other kinds of paper
2. Entire machine is controlled by PLC(two vector motors), man-machine interface, screen touch operation
3. Unwinding part adopts Italy RE pneumatic brake control, the rolling diameter is automatically calculated by PLC, to achieve constant tension control.
4. Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively cut off interactant tension between rewind and unwind
5. Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic cliameter counting auto tension control.
6. Unwinding parts adopts hydraulic power feed, which can save much labour force and shorten time.
7. Auto meter presetting, EPC error correction device is positive to assure the accuracy.

technical parmeter:

Max. width of raw material	1100-1800mm
Max. diameter of raw material	Φ 1300mm(special design)
Rewinding diameter	Φ 800mm(special design)
speed of machine	16-160m/min
total power	11kw
overall dimension(L×w×H)	2700×1300×1500mm
weigth of machine	3000kg
