Wenzhou Ruizhi packing machinery co.LTD
|

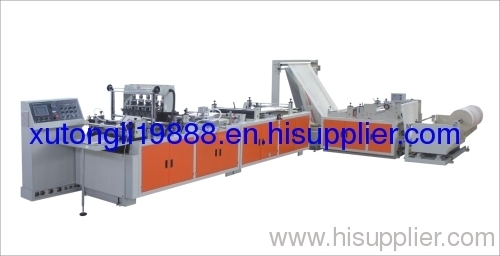

2011 WZDJ-VII Non-woven Fabric Flat Bag Making Machine
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.produce kinds of non-woven bags( flat bags)
2.high quality and reasonable price
3.fast after service
Use:
This machine continual improved by our company, according to same industry technical norms of the most advanced in the world at present,recast and designed by the newest demic engineering. Multi-function\fast speed\quality stable. Now, this machine become the newest generation full automatic multifunction non woven fabric bag making machine, and this equipment use non-woven fabric raw material,can made various type bag\different type non-woven fabric bag,such as gift bag\handle bag\flat bag\T-shirt bag etc. It have superiority to make many kinds of bag on the machine,get more favor and good opinion from native and foreign customers! Completely attain CE safety standards in Europe.
Function:
1. This machine adopt Taiwan touch screen computer display,PLC computer program which can edit.
2. Auto meter counting,stopping could freely setting number.
3. Computer Fixed-length,printing color mark track orientation,Auto-stop when complete.
4. high voltage static processor,Auto constant temperature heating controller.
5 It could control auto pneumatic handle punch\vest bag waste material blower remove waste\T-shirt bag automatic contact punch.
6. Unwinding magnetic powder tension control with manual,Auto side-correction control.
7.This machine adopt ultrasonic welding of all aspects,bag mouth folding welding,bottom sealing,side sealing,once full completed,fast speed\east to operate\firm sealing,beautiful and decent.
Main Technical Parameters:
600Model | |
Type | Flat Bag |
Max.Length of Bag-making (mm) | 100-700 |
Max.Width of Bag-making(mm) | 300-550 |
Speed(pcs/min) | 20-110 |
Thickness of Raw Material(g) | 35-100 |
Insert Dimension(mm) | 30-90 |
Power Supply | 380(Three-phase Four-wire power cable) |
Total Power(kw) | 9 |
Air Pressure | 0.36 |
Machine Dimension L xW xH(mm) | 6000x1100x1600 4000x1600x1600 |
700 Model | |
Type | Flat Bag |
Max.Length of Bag-making (mm) | 100-700 |
Max.Width of Bag-making (mm) | 300-650 |
Speed(pcs/min) | 20-110 |
Thickness of Raw Material(g) | 35-100 |
Insert Dimension(mm) | 40-90 |
Power Supply | 380v (Three-phase Four-wire power cable) |
Total Power(kw) | 10 |
Air Pressure | 0.36 |
Machine DimensionL xWxH(mm) | 6000x1300x1800 4000x2000x1900 |
800 Model | |
Type | Flat Bag |
Max.Length of Bag-making (mm) | 100-700 |
Max.Width of Bag-making(mm) | 300-750 |
Speed(pcs/min) | 20-110 |
Thickness of Raw Material(g) | 35-100 |
Insert Dimension(mm) | 40-90 |
Power Supply | 380v (Three-phase Four-wire power cable) |
Total Power(kw) | 11 |
Air Pressure | 0.36 |
Machine Dimension LxWxH(mm) | 6000x1300x1800 4000x2000x1900 |
