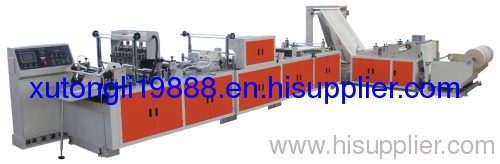

2011 WZDJ-NB Full Automatic Multifunction Non Woven Fabric Stand Bag Bag Making Machine
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.produce kinds of non-woven bags( flat ,box ,shopping,t-shirt bags)
2.high quality and reasonable price
3.fast after service
Use:
This machine continual improved by our company, according to same industry technical norms of the most advanced in the world at present,recast and designed by the newest demic engineering. Multi-function\fast speed\quality stable. Now, this machine become the newest generation full automatic multifunction non woven fabric bag making machine, and this equipment use non-woven fabric raw material,can made various type bag\different type non-woven fabric bag,such as gift bag\handle bag\flat bag\T-shirt bag etc. It have superiority to make many kinds of bag on the machine,get more favor and good opinion from native and foreign customers! Completely attain CE safety standards in Europe.
Function:
1. This machine adopt Taiwan touch screen computer display,PLC computer program which can edit.
2. Auto meter counting,stopping could freely setting number.
3. Computer Fixed-length,printing color mark track orientation,Auto-stop when complete.
4. high voltage static processor,Auto constant temperature heating controller.
5 It have could control automatic triangle trim angle, stand type air pressure welding\automatic pneumatic handle punching.
6. Unwinding magnetic powder tension control with manual,auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects,bag mouth folding welding,bottom sealing,side sealing,once full completed,fast speed\east to operate\firm sealing,beautiful and decent.
Main Technical Parameters:
700Model | |||
Bag Type | Flat bag | Box bag | T-shirt bag |
Length of Bag (mm) | 100-700 | 300-600 | 300-600 |
Width of Bag (mm) | 300-650 | 350-550 | 150-420 |
Speed (pcs/min) | 20-110 | 20-50 | 20-70 |
Material Thickness (g) | 35-100 | 45-85 | 35-60 |
Inserting Size (mm) | 30-90 | 30-80 | 30-120 |
Machine Power | 380v (Three-phase Four-wire power cable) | ||
Air Pressure | 0.36 | ||
Total Power(kw) | 13 | ||
Machine Weight(kg) | 3500 | ||
Incasement Weight(kg) | 4200 | ||
Overall Dimension L Shape (mm) | 6800x1300x1800 4000x1800x1800 | ||
With T-shirt bag punch(pcs) | 5-10pcs | ||
Dimension with T-shirt bag punch(mm) | 2800x1200x1900 | ||
800 Model | |||
Bag Type | Flat bag | Box bag | T-shirt bag |
Length of Bag (mm) | 100-700 | 300-700 | 300-600 |
Width of Bag (mm) | 300-750 | 300-650 | 200-480 |
Speed (pcs/min) | 20-110 | 20-50 | 20-70 |
Material Thickness (g) | 35-100 | 45-85 | 35-65 |
Inserting Size (mm) | 40-90 | 40-80 | 40-120 |
Machine Power | 380v (Three-phase Four-wire power cable) | ||
Air Pressure | 0.36 | ||
Total Power(kw) | 14 | ||
Machine Weight(kg) | 4000 | ||
Incasement Weight(kg) | 4500 | ||
Overall Dimension L Shape (mm) | 6800x1300x1800 4000x2000x1900 | ||
With T-shirt bag punch(pcs) | 5-10pcs | ||
Dimension with T-shirt bag punch(mm) | 2800x1200x1900 | ||
