Wenzhou Ruizhi packing machinery co.LTD
|

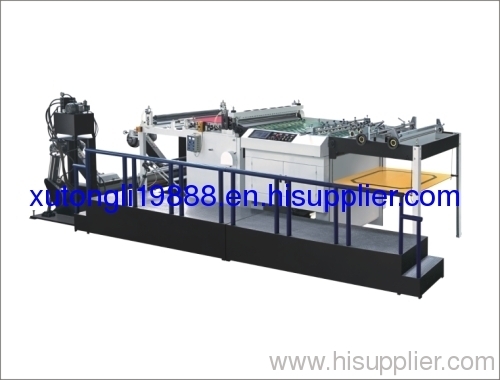

2011PHJD Series Full Automatic Computer Control Cross Cuttong Machine
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.Auto lengh-fixed
2.Computer control
3.Frequency adjuseing speed
4.Our Machine Approved by ISO9001, 2000.
Use
Suitable for cross cutting white paperboard\kraft paper\
(demand by client).
Function:
1 This machine adopt computer control(Auto length-fixed\Alarm when complete\Auto-stop\Meter counting).
2 Servo motor length-fixed\oil pressure or air pressure for auto-unwinding function;auto stacking,orderliness\evenness(vibrating motor)\magnetic powder brake\flat blade cut off\material-feeding press-roller(air pressure)\circular blade adjusting wasted edge\shaftless hydraulic pressure tip material(axis)\main motor frequency adjusting speed.
3 Extra Exchange Function:cutting & printing photosensitive tracking (G)\Automatic correction(J).
4 Main Machine Is Made By:Steel plate\cast iron\channel steel.
Main Technical Parameters:
Model | 1400 | 1700 |
Max.Cutting Width(mm) | 1350 | 1650 |
Max.Cutting Length(mm) | 400-1400 | 400-1400 |
Speed of Machine(pcs/min) | 20-130 | 20-130 |
Diameter of Raw Material(mm) | 1500 | 1500 |
Stacking Height(mm) | 1200 | 1200 |
Material Thickness range (g) | 70-550 | 70-550 |
Orientation Precision(mm) | 0.2 | 0.2 |
Max.Cutting Speed (pcs/min) | 100 | 100 |
Power Supply(V) | 380V (three-phase four-wire power cable) | 380V (three-phase four-wire power cable) |
Total Power(kw) | 13kw | 17kw |
Machine Weight(kg) | 7500kg | 9500kg |
Incasement Weight(kg) | ||
Machine Dimension(mm) | 7700x3500x2300 | 7700x3800x2300 |
